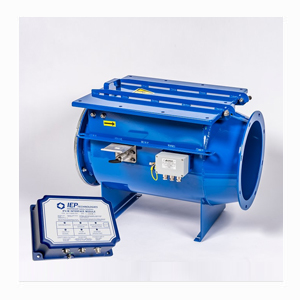

Expro Technologies is a leading explosion isolation valve manufacturers in India, suppliers, traders, dealers and exporters in India, We are offering the new designed explosion isolation valve.

This explosion isolation valve is a safety device and designed to preventing the propagation of explosion and pressure from one area to another area. It also minimizes the risk of secondary damage. It acts as a mechanical barrier and closes quickly to isolate the affected areas. It is dual functional aspects such as active isolation and passive isolation and these are used as per the requirement and situation. Let’s check out its different types, it’s using benefits and applications also!

Explosion Isolation Valve Traders, Dealers and Exporters in India

Types of Explosion Isolation Valve

Being the best explosion isolation valve manufacturers and suppliers in India, we are providing the high-quality of explosion isolation valve such as:

  • Active Mechanical Explosion Isolation Valve: These are the highly demanding and new technological mechanism of active isolation valve and requires internal sensors and external sensors and activation systems to close upon detecting an explosion accurately. It is more responsive and precise than passive systems. These relate to new sensors such as flame, pressure and heat resistance for rapid activation and it can be pneumatically, electrically, or hydraulically actuated.
  • Passive Mechanical Explosion Valve: These new passive isolation valve can able to detect the abnormalities or external threat accurately such as explosion, stopping the flames and pressure wave from spreading further. It requires no external power or sensors to activate, relying purely on pressure dynamics. In the case of emergency, it reacts quickly and instantly to pressure waves caused by explosions. It contains a spring-loaded or flap mechanism that shuts off airflow.
  • Double Flap Valve: This new designed double flap valve consists of two sequential flaps that prevent explosion backflow in dust collection systems and air ducts. These valves operate in both normal and explosion conditions. It has two types of independent and sequentially closing flaps for creasing a barrier against explosion propagation and allows for normal materials to flow under standard conditions. Due to this working procedure, these are used in the dust collection, pneumatic conveying, and material handling systems.
  • Isolation Ball Valve: This isolation ball valve is majorly used in the large industrial sectors due to its higher performance, full-bore shutoff valve that provides explosion isolation by rotating a solid ball to block the flow of gases or dust-laden it. These relate to rotating ball mechanism and provides a complete seal when closed and it can be manually or automatically actuated. Due to its working procedure, these are used in pipelines and gas distribution networks.

Technical Specifications of Explosion isolation valve

We have mentioned below a technical sheet of Explosion isolation valve with detailed information such as:

Active Mechanical Passive Mechanical Double Flap Isolation Ball
Response Time <10 ms 10 – 50 ms 10 – 30 ms <20 ms
Activation Sensor-based (electrical/pneumatic) Self-activates (pressure rise 0.2 – 0.5 bar) Self-activates (0.1 – 0.3 bar differential pressure) Pneumatic/electric actuator (0.3 – 1.0 bar trigger)
Explosion Pressure Resistance Up to 10 bar Up to 7 bar Up to 5 bar Up to 15 bar
Power Requirement 24V DC / 230V AC or 6-8 bar air None None 6-10 bar pneumatic / 230V AC
Temperature Range -20°C to 200°C -40°C to 250°C -20°C to 200°C -30°C to 250°C
Installation Filters, silos, mills, conveyors Ducts, elevators, filters Conveying lines, filter systems Pipelines, reactors, hazardous zones
Valve Sizes DN100 – DN600 DN100 – DN1000 DN150 – DN500 DN50 – DN300
Maintenance Every 6-12 months Every 12-24 months Every 6-18 months Every 3-12 months
Weight (Approx.) 50 – 300 kg 40 – 250 kg 30 – 200 kg 20 – 150 kg
Certifications ATEX, NFPA 69, ISO 16852 ATEX, NFPA 69, ISO 16852 ATEX, NFPA 69, CE ATEX, NFPA 69, PED

Important Feature and Benefits of Explosion Isolation Valve

Being the best explosion isolation valve manufacturers and exporters in India, these all types of valves are made with new technological updates such as:

  • High-Speed Response: These all types of explosion isolation valve have a higher speed response and are able to open within milliseconds to prevent explosion propagation.
  • Automatic Activation: This can automatically detect pressure or flame and triggers isolation without manual intervention.
  • Robust Pressure Resistance: These are made with robust and pressure-resistant formulations and able to resist explosion pressures up to 15 bar, ensuring system safety.
  • Multiple Actuation Methods: The use of new multiple actuation methods in these explosion isolation valves means they can be operated via electrical, pneumatic, or self-activating mechanisms.
  • Wide Temperature Tolerance: Our all types of explosion isolation valve are attached with multiple types of fire-resisting materials to resist against extreme conditions from -40°C to 250°C.
  • Low Maintenance Requirement: These are made with durable materials and help in maintaining long service intervals with minimal inspections.
  • Flexible Installation: These are highly versatile and able to work with ducts, silos, conveyors, mills, and reactors.
  • Certified Explosion Protection: Compliant with ATEX, NFPA 69, ISO 16852, and PED standards.

Applications of Explosion Isolation Valve

Our all types of new explosion isolation valve are made with new technological updates and gives higher performance in every applied application such as:

  • Prevents explosion propagation in industrial ducting and piping systems.
  • Protects dust collection systems from explosion pressure waves.
  • Enhances safety in pneumatic and bulk material handling.
  • Isolates combustion hazards in biomass and energy plants.
  • Secures food processing facilities from combustible dust explosions.
  • Shields pharmaceutical production from explosive dust ignition risks.
  • Ensures explosion safety in chemical and petrochemical processing.
  • Controls fire hazards in metalworking and foundry operations.
  • Protects woodworking facilities from sawdust explosion hazards.
  • Enhances explosion safety in mining and material extraction sites.

Frequently Asked Questions (FAQs)

An explosion isolation valve prevents explosion propagation by blocking flame and pressure waves in duct systems. It is used in industries handling combustible dust or gases.

These valves are used in dust collection systems, pneumatic conveying, biomass plants, and chemical processing units to enhance explosion safety.

It detects an explosion’s pressure wave and rapidly closes to stop the flame and pressure from traveling through connected ducts or pipes.

Yes, many industrial safety regulations, such as NFPA and ATEX, require explosion isolation valves in hazardous dust or gas handling processes.

As a leading Explosion Isolation Valve manufacturers in India, suppliers, traders, dealers, exporters in India, we as Expro Technologies are providing the latest technological mechanism of explosion isolation valve. These explosion isolation valves are made with high quality of materials inside for maintaining its durability and able to resist higher thermal resistance. The compact and precise design with pressure resistance formula helps them to use in any kind of external applications. Contact us today for more information!
