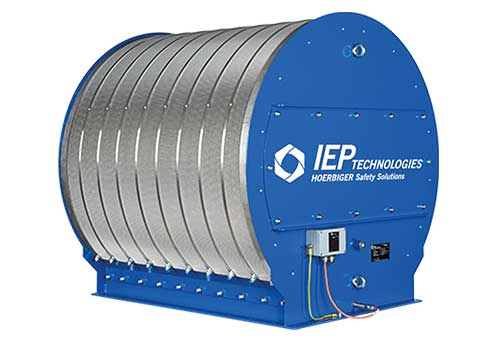

The IV8 Flameless Explosion vent provides an explosion protection solution for process vessels which are located inside a building or areaswhere standard explosion venting cannot be safely employed. For theseapplications, flameless explosion vents may be the best protectionsolution. When an explosion occurs, the venting device opens and ventsthe explosion pressure and flame through a flame arrester, therebycooling the hot gases and quenching the flame. The IV8 utilizes a stainless steel explosion relief vent and flame arresting mesh enclosed ina durable carbon steel coated frame. The integrated vent burst detection sensor allows plant personnel to respond accordingly in the event of anexplosion within the protected application.

Features

Provides explosion pressure relief without flame ejection

Superior efficiency due to large mesh area

Single device can protect up to 12.3 m³, maximum protected volume 49.2 m²

Unique vent folding mechanism provides high venting efficiency.

Certified to EN16009 using state-of-the-art measurement technologies.

Integrated vent burst sensor

Multiple inspection ports to allow easy inspection

Designed for field reconditioning

Optional weather cover

Enquire Now

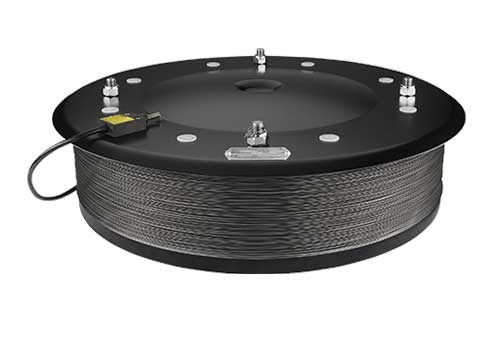

The EVN range of flameless vents are designed to quench the ejected flamefront and relieve the pressure from a dust explosion. Offered in a range of styles each with an integrated flame arrester designed to provide flameless pressure relief. The revolutionary EVN range of flameless vents have a low-mass valve plate and low opening pressure. This flameless vent reacts within fractions of a second in the event of an explosion. Following an explosion, the valve plate closes and seals again, lowering the risk of post-explosion fires.

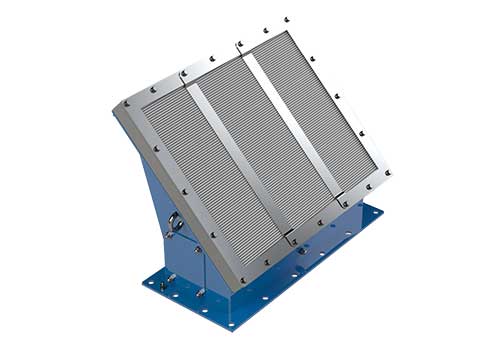

The IVE Flameless Explosion Vent provides an explosion protection solution for process vessels, especially bucket elevators, which are located inside a building or areas where standard explosion venting cannot be safely employed. For these applications, flameless explosion vents may be the best protection solution. When an explosion occurs, the venting device opens and vents the explosion pressure and flame through a flame arrester, thereby cooling the hot gases and quenching the flame. The IVE utilizes a stainless steel explosion relief vent and flame arresting mesh enclosed in a durable carbon steel coated frame. The integrated vent burst detection sensor allows plant personnel to respond accordingly in the event of an explosion within the protected application.

The IV8 Flameless Explosion vent provides an explosion protection solution for process vessels which are located inside a building or areas where standard explosion venting cannot be safely employed. For these applications, flameless explosion vents may be the best protection solution. When an explosion occurs, the venting device opens and vents the explosion pressure and flame through a flame arrester, thereby cooling the hot gases and quenching the flame. The IV8 utilizes a stainless steel explosion relief vent and flame arresting mesh enclosed in a durable carbon steel coated frame. The integrated vent burst detection sensor allows plant personnel to respond accordingly in the event of an explosion within the protected application.
